Distribution Piping

  • OVER THE LAST 25 YEARS WE HAVE ERECTED OVER
    10,000 MTRS OF SANITARY PIPING
    for API, Formulations and Biotech companies, delivering consistent quality PFW & WFI.
  • OUR EXPERIENCED TECHNICIANS GUARANTEE
    QUALITY PIPING ERECTION
    With high quality orbital welds, 100% drainability, sag proof supports, passivation with full documentation support.
  • HIGH QUALITY S 316L PIPING CONFORMING TO
    ASTM A-270 STANDARDS
    Electropolished to < 0.3 μm with heat numbers for 100% traceability with mill certification.

Ensuring quality at Point of Use!

SS316L pipes, electropolished, orbitally welded is what is needed. Well,that's the minimum. We do a lot more than that to ensure quality of water at point of use.

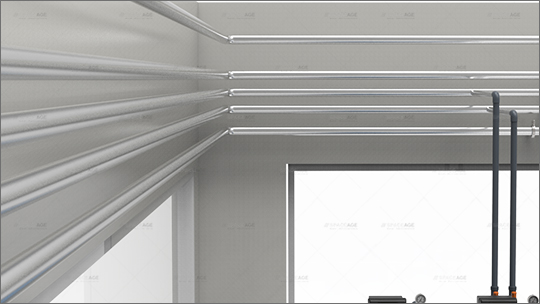

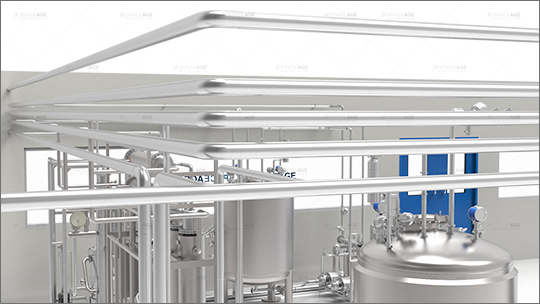

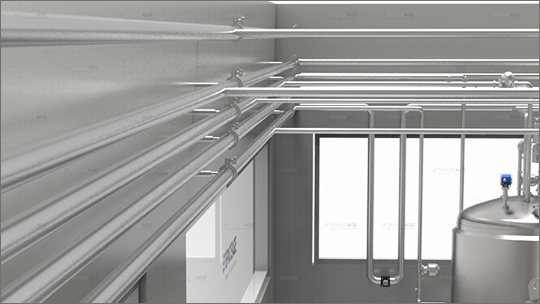

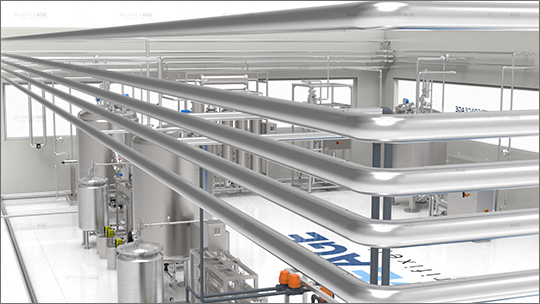

Distribution Piping

We use very high quality SS316L, electropolished tubes confirming to ASTM A 270 Standards.It is very important to ensure the tubes are orbitally welded with the highest possible internal weld finish without any crevices or convexity.

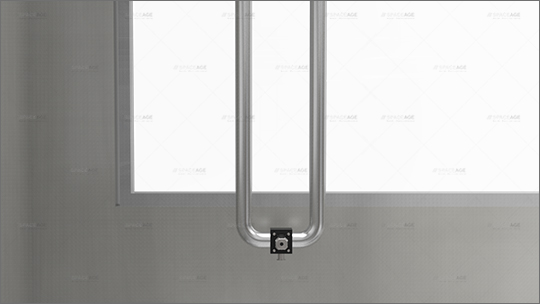

Erection of the tubes begins with erecting proper support at the right distances and at the right height to ensure 100% drainability and to avoid dead legs. Extensive testing post Erection of the pipes like hydro testing for leakage, drainability / slope test and passivation is conducted and documented for validation.

At Spaceage these critical tasks are conducted by some of the best and most experienced techniciansl in the industry under strict supervision by highly Experienced senior engineers.

  • Quality Piping material

    SS 316L, Electropolished Piping with internal finish <0.45µ Ra

  • 10% Borescopy

    High quality weld assured by 10% random borescop

  • Sanitary Diaphragm Valves

    High quality diaphragm valves with food grade diaphragm

  • Quality Pipe support

    Short distance and high quality pipe support to prevent sagging

  • High quality Orbitally Welds

    Qulity orbital welds with Grade 1, 99.995% purity Argon gas

  • Quality documentation

    High quality documentation for easy validation

  • Passivated and Hydro-tested

    Loop Passivation and Hydrotesting for leaks

  • 100% drainibility assured

    Drainability throughout the system assured with slope test
